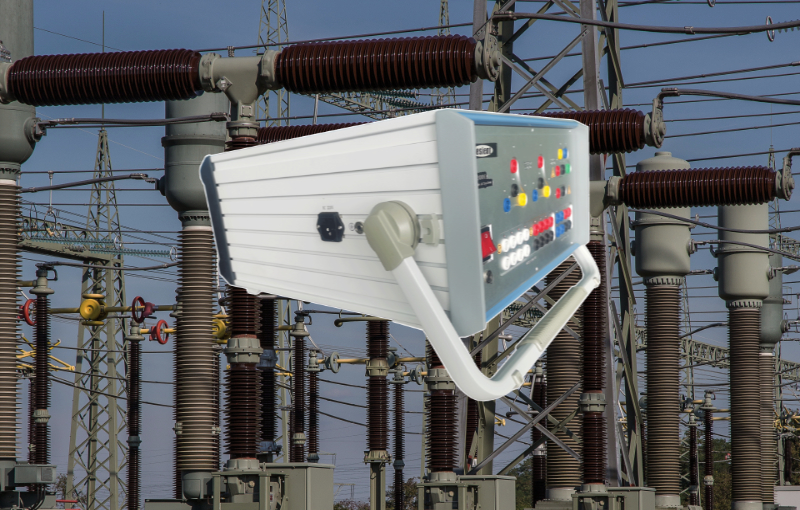

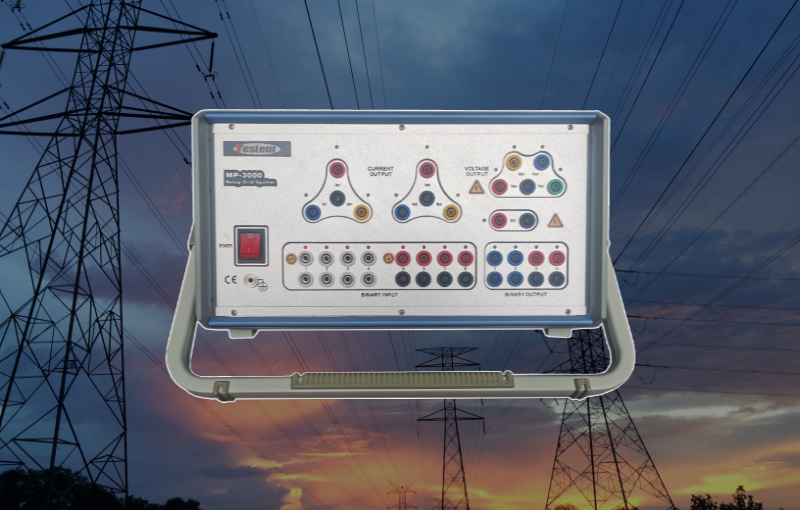

MP3000 A

Six Phase Protection Test System

The powerful three-phase relay test set MP3000A is designed for multipurpose field test and commissioning application. All types of protection relays, including electro-mechanical, solid state and modern microprocessor based, can be easily tested with our automatic relay testing software. High accurate voltage and current source makes it easy to test energy meeters and transducers too.

  • Six currents and four voltages

  • High power and high accuracy

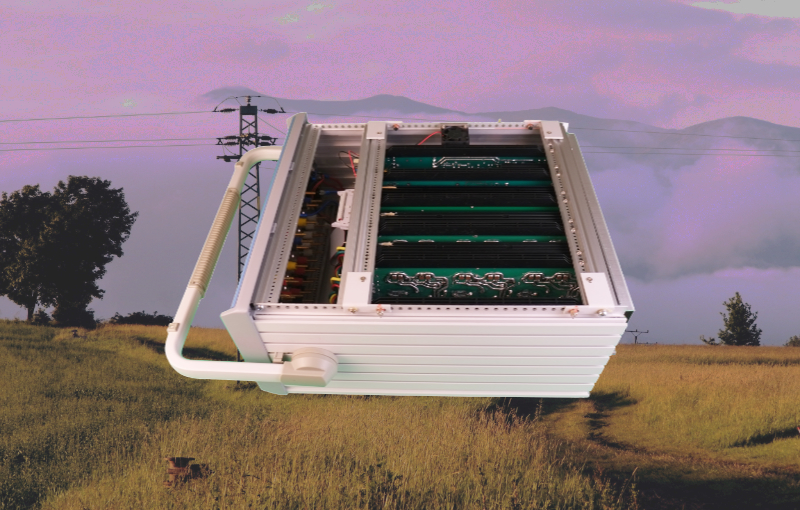

  • Advanced modular Plug-in structure

  • Full automated testing using PC control software

  • End to end test with GPS or IRIG-B

  • Light weight, easy to use

  • 5 years free warranty

Specifications

Voltage
Range: 4 x 300V / 100VA
Accuracy: error < 0.1 % rd.+ 0.01 % rg. typ.
Output time: continuous

Current
Range: 6 x 30A / 450VA
Accuracy: error < 0.1 % rd. + 0.02 % rg. typ.
Output time: > 15 Sec. at 30A

Frequency
Range: DC, 0.001Hz~1000Hz
Accuracy: ±1ppm
Resolution: 0.001Hz

Others
Auxiliary DC supply:  24-300V
Binary inputs:  8
Binary outputs: 4
Time synchronization (optional): GPS, IRIG-B
Weight: 16.5kg
